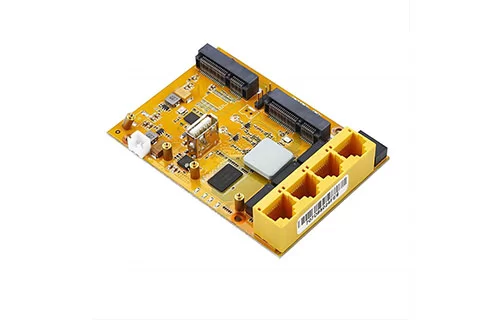

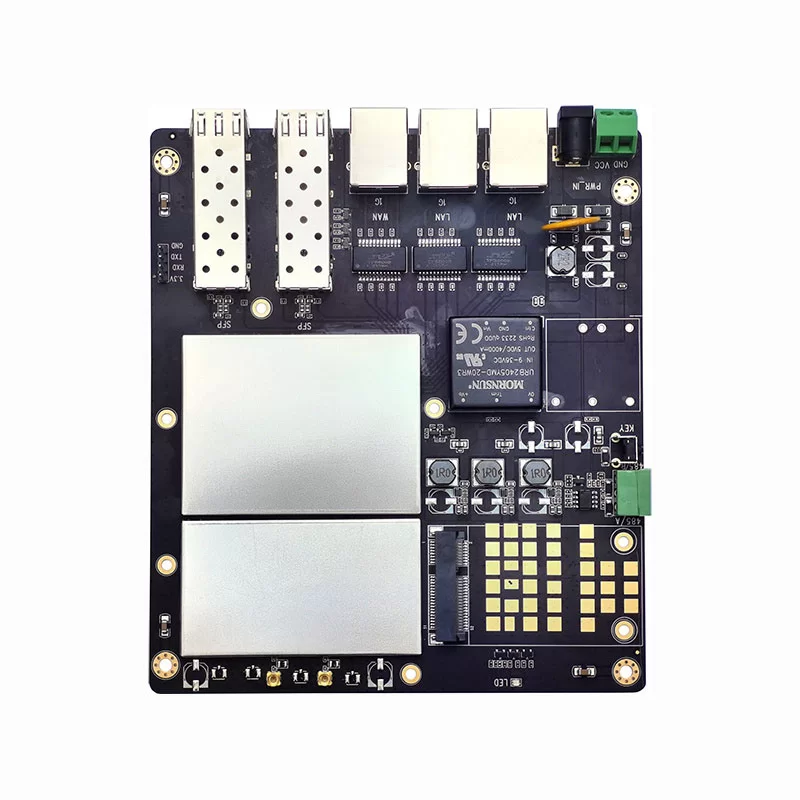

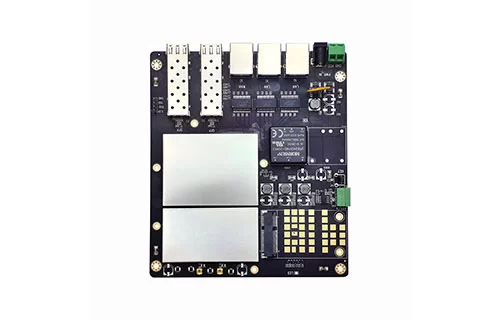

Wifi Router Mainboard PCB Assembly
Importance of Wifi Router Mainboard PCB Assembly
Hardware Platform: All router functions rely on the PCBA board as the hardware platform.
Performance Determinants: The types of components selected, the design layout, and the manufacturing process on the PCBA board directly determine the router's processing performance, network throughput, wireless coverage and strength, stability, power consumption, and other key indicators.
Core Cost: The PCBA board is typically the largest component in the router's BOM (Bill of Materials) cost.
Role of Wifi Router Mainboard PCB Assembly
The PCB in a router manages data routing between a local network (LAN) and external networks (WAN or internet). It integrates communication chips, antennas, and power management circuits to ensure stable data transmission, which is vital for ems companies involved in pcb assembly services.
