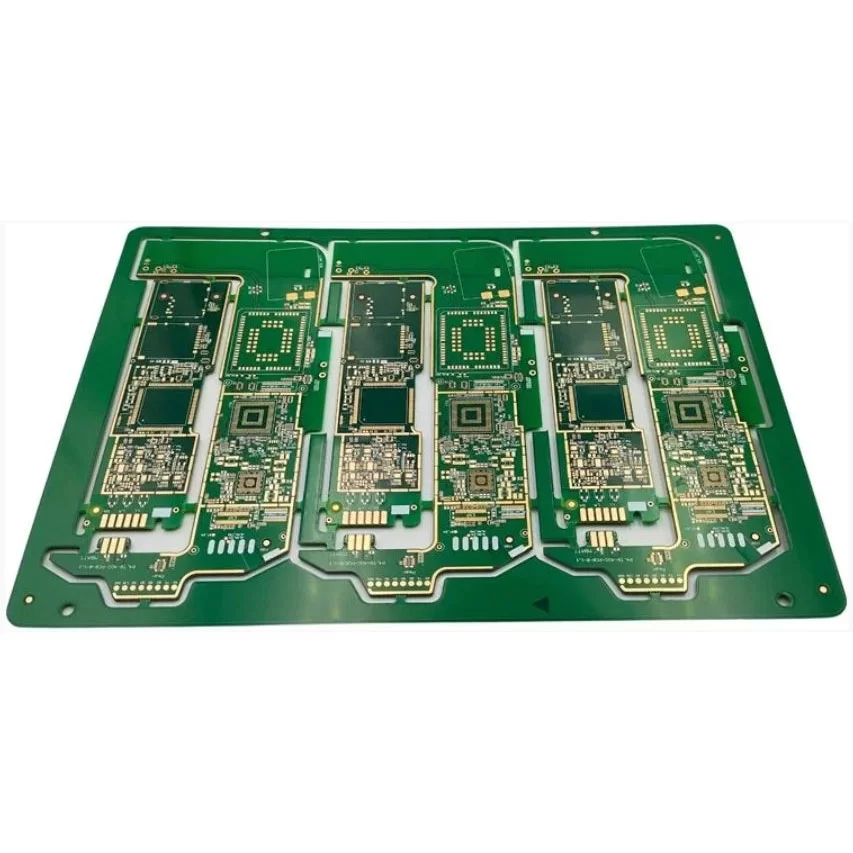

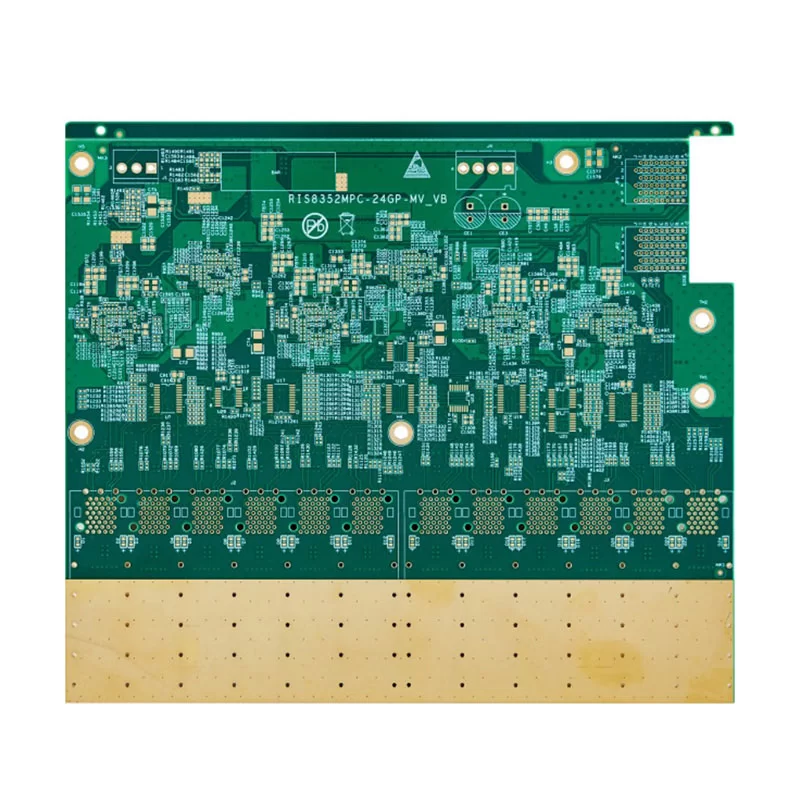

10 L HDI Communication PCB
Parameter
Model:10 L(1+8+1)
- Layers:10
- Material: SY
- Finished Thickness:1.2mm
- Copper Thickness:0.5OZ
- Color: Blue/White
- Surface treatment: ENIG1-2U’’
- Special technology: None
- Min Trace/Space: 2.5mil/2.5mil
- Application: HDI Communication PCB
