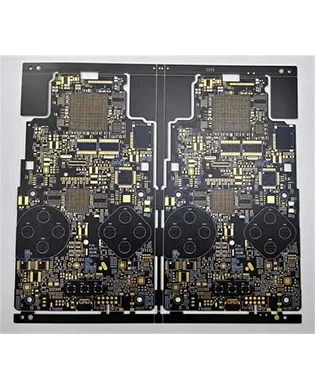

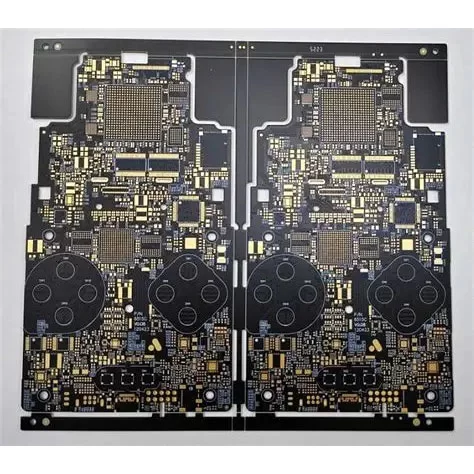

6L HDI Portable Electron PCB
Parameter
Model :6L(1+N+1)
- Material:FR-4 ITEQ IT180A
- Layer : 6L1+N+1 HDI
- Color :Green /White
- Finished Thickness:0.8m
- Copper Thickness：inner1OZ outer0.5OZ
- Surface Treatment:Immersion ENIG1-2U''
- Min Trace/Space: 3mil/3mil
- Min Hole :Mechanical hole 0.2mm
- Application:Portable electron pcb
