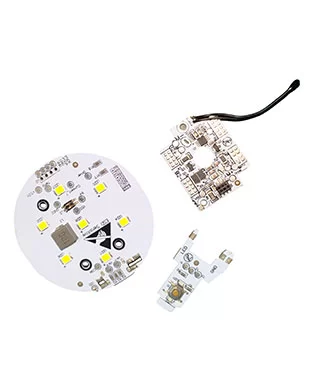

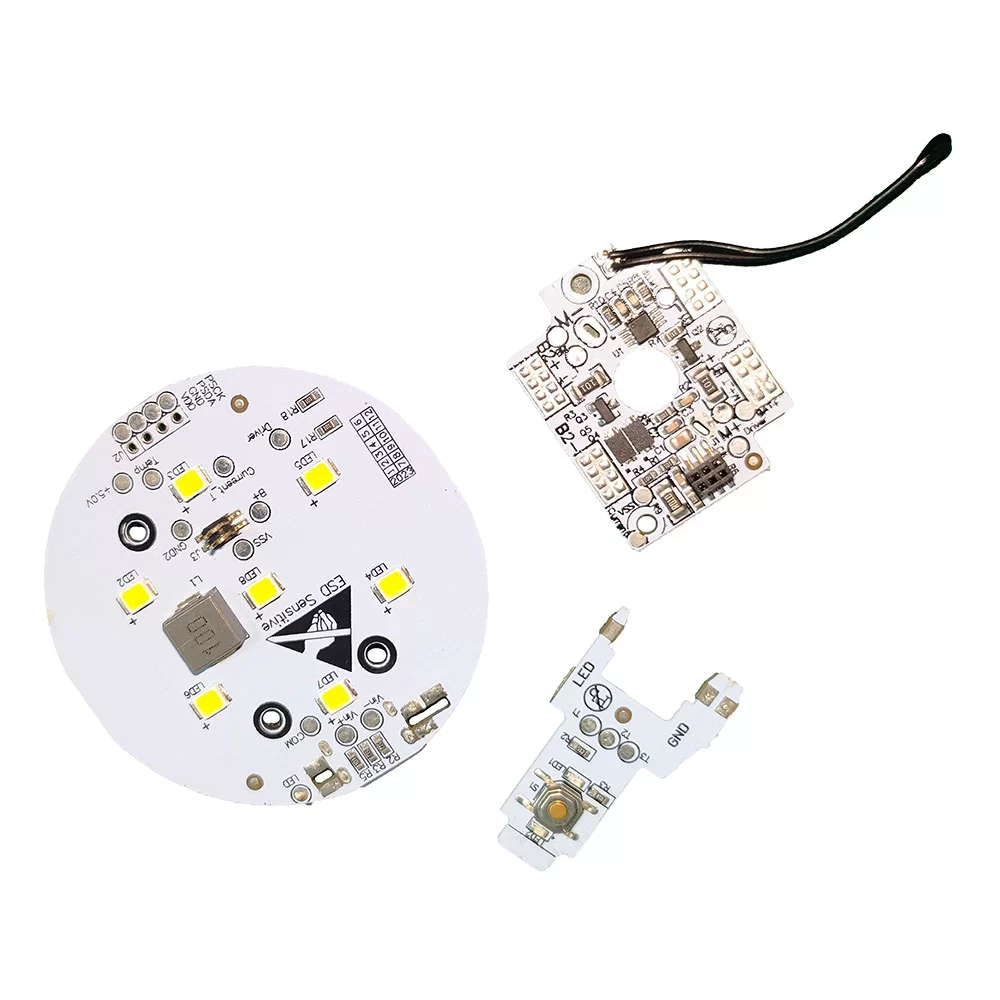

Car Air Pump PCBA
Printed Circuit Board Assembly Alum-Base PCBA For Car Air Pump With FPC Cable And 7 LED Lights
Description | Capability |
PCB size | 49.2*1.0mm |
Light source | LED White light *7pcs |
Touch button | 1pcs |
Battery panel connection | FPC cable |
This PCBA is a motherboard designed for in-car inflators, designed to provide portable inflating capabilities. It is equipped with 7 white lights as a light source for lighting the environment. These white lights provide bright and uniform light, making it easy for users to use the pump at night or in dim conditions.
The battery panel adopts FPC wire, which is flexible and bendable. It can easily connect the panels and other key components of the pump to provide reliable power supply and signal transmission.
In summary, this car air pump PCBA has 7 white lights as a light source, 1 touch button for control, and uses FPC line to connect the panel. These features make the product portable, lighting functions and flexible use, convenient for users to fill and repair the vehicle when needed.
If you have any camping barbeque equipment inquiry, please feel free to contact us.
