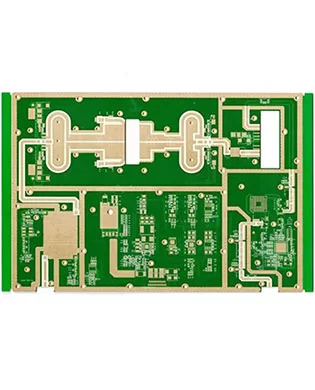

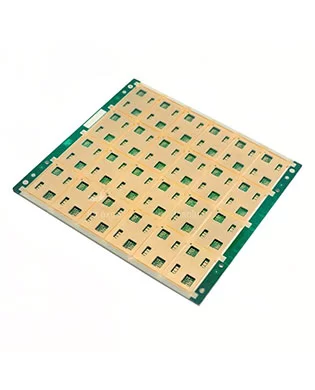

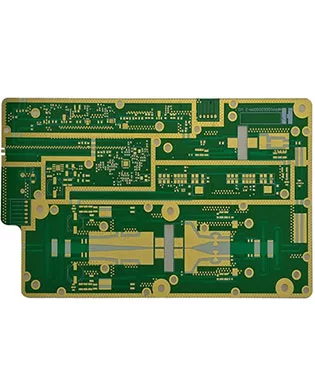

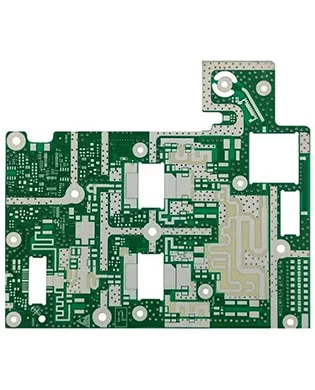

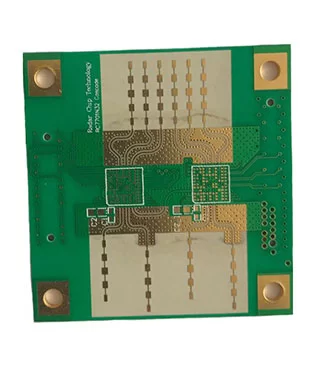

GPS Navigation Rogers 4350B Impendance Control Board
Data Sheet
Model: Ro4350B Hybrid High Frequency PCB
- Material: Rogers RO4350B+FR4 Mixing Press
- Layer: 6L
- DK:3.48
- Finished Thickness: 1.6MM
- Copper Thickness: 10Z
- Dielectric Thickness:0.762mm
- Thermal Conductivity: 0.69w/m.k
- Flammability: 94V-0
- Surface Treatment: Immersion Gold
- Application: Communication, Instrumentation, Radio Frequency PCB
