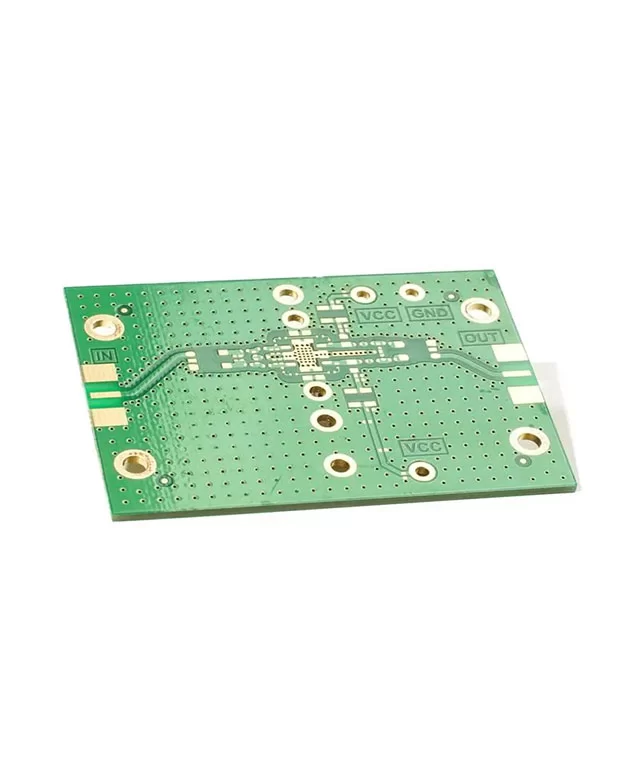

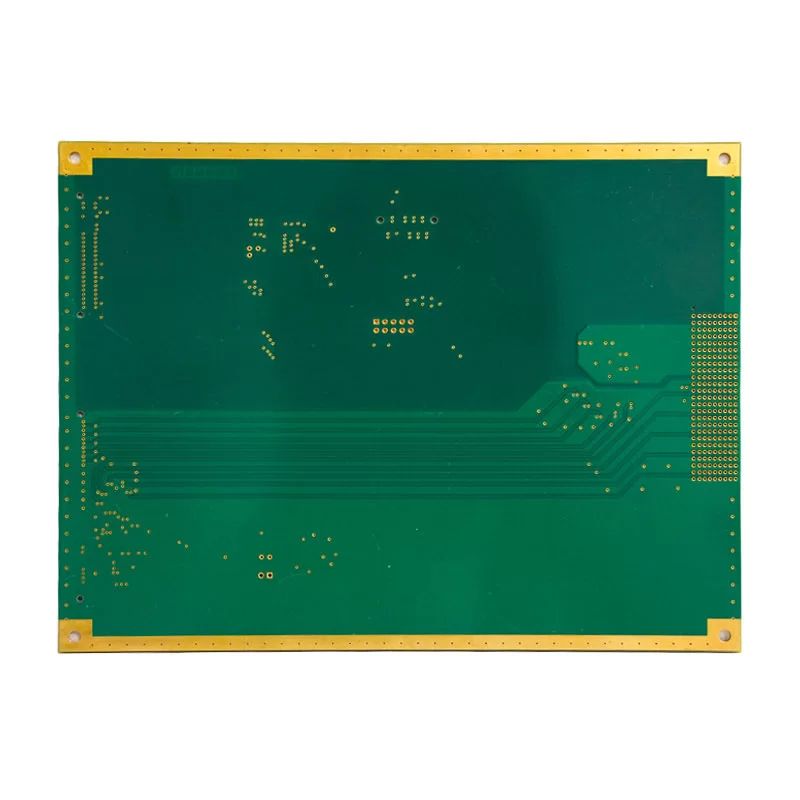

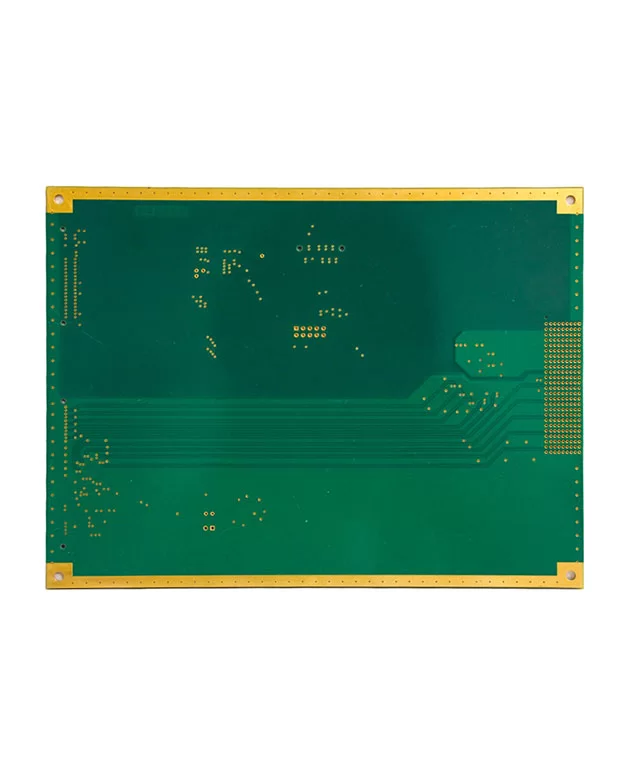

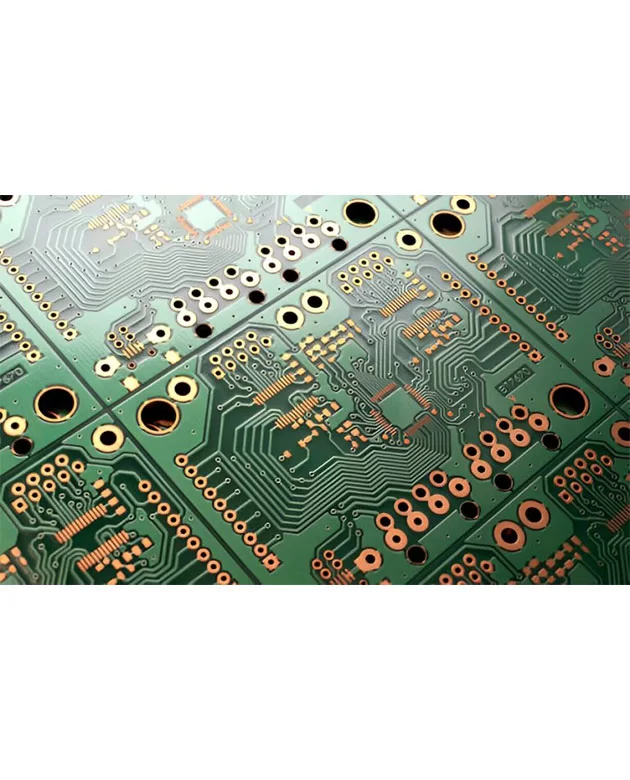

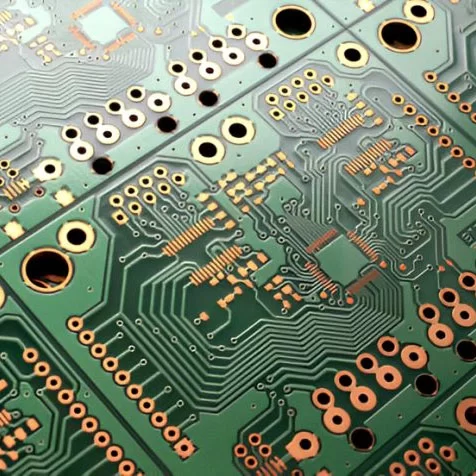

What is Low Loss PCB?
Low loss PCBs are circuit boards specially designed for reduced attenuation and losses due to the PCB's electrical, thermal, and mechanical properties. These PCBs are deployed for high-speed applications like telecommunication, medical, aerospace, automotive, RF and Microwave, defence, and handheld device applications. Low loss PCBs generally have very high physical endurance, making them reliable for longer.
The main factors affect Low Loss PCBs' performance
1. Material selection
What is the essential core of low loss PCB material?
1. Low & Stable Dielectric Constant (Dk)
Measures energy storage in an electric field. A low, uniform Dk (across wide temperatures) ensures stable impedance, low signal delay, and minimal distortion.
Advantages of Low-Loss PCBs
1.Enhanced Signal Integrity: Reduced losses also extend the usable signal distance. Minimal attenuation ensures excellent signal integrity, ideal for signal transmission.
Applications
Telecommunication: mobile towers, 5G and 100 Gigabit Ethernet etc.
Data Centres: servers and Network Switches.
Medical Devices: Those require very high precision signals like CT scanner or MRI machine.
Aerospace and Radar: To support high sensitivity, very high precision impedance controlled PCBs are required to maintain high precision data.
Consumer Electronics: Processing the data of smartwatches, smartphones from high-speed networks such as 5G requires Low loss PCB.
