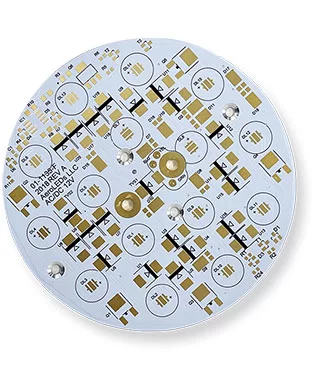

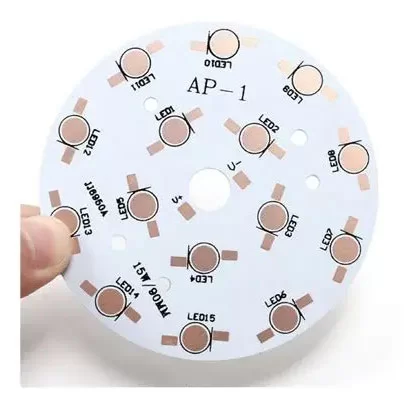

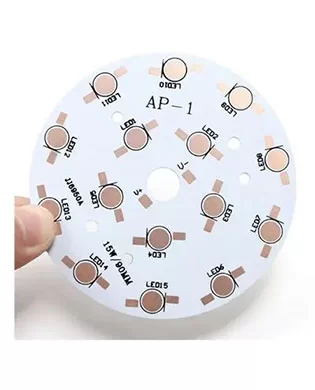

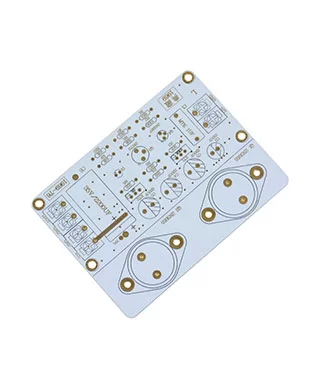

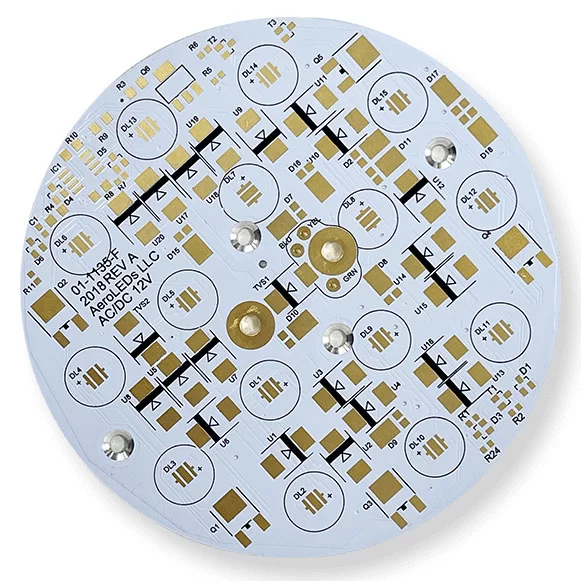

Single-Layer Aluminum PCB
Data sheet
Model: Aluminum LED strip PCB
Layer:1
Material:Aluminium PCB
- Finished Board Thickness:1.0mm
- Finished Copper thickness:1oz
- Min Line Width/Space:≥3mil(0.075mm)
- Min Hole:≥4mil(0.1mm)
- Surface Finish:LF-HASL
- Solder Mask Color:White
- Legend Color:Black
- Application: LED strip
About Single-Layer PCB
Single-Layer PCB: This PCB consists of a single layer of aluminum substrate PCB, they are comparatively simple in design and used in applications where heat management is the main concern. Some applications are LED lighting, automotive electronics, power supplies etc.
Applications
Surgical Lighting Tools,
- High-power Scanners,
- Electronic Control,
- Power Transmission Systems,
- Automotive Dashboards,
- Power Modules,
- Interior Lighting,
- Audio Equipments,
- Landscape Lighting
